Description

  • Brand Name: ERISU AUDIO
  • Origin: Mainland China
  • Camera Equipped: No
  • Model Number: VOLCA

KORG VOLCA MODULAR MIX BEATS BASS KEYS SAMPLE FM KICK DRUM

Product Details:
VOLCA series
touch synth
Lightweight and portable Built-in speaker Customized power supply

VOLCA FM
This is a digital FM synthesizer that reproduces FM synth sounds using 6 operators and 32 algorithms to create electric steel, synth bass-like sounds.
The built-in 16-step sequencer is also a 27-key touch-mode keyboard in the sequencer operation interface. It can perform 3-voice performance, supports MIDI and synchronization connections, and is battery powered. It can be played through the integrated speaker or connected to the headphone output interface.

Button diagram
(1 Power Switch) (2 Power Connections) (3 Envelope Generation Lines) (4 LFOs) (5 Program Selects) (6 Sync Connections) (7 Audio Connections) (8 Pitch) (9 Velocity) (10 Master control area) (11 keyboards)

parameter
keyboard multi-touch
Sound generator FM sound source (6 oscillators up to 3 notes)
Power supply 6 AA batteries (about 10 hours) 9v AC adapter (positive inside and negative outside)
Included accessories 6 batteries User manual
Dimensions 193x115x46mm
Weight 360g

VOLCA KEYS
This is an analog synth that plays an outstanding 3-voice lead sound, consisting of oscillators with sawtooth and square waves, filters, LFOs and envelope generators, including delay effects. It also has a built-in sequencer that can be used as a 27-key touch keyboard with Actice Step and FIux functions. Support MIDI and sync connection, battery powered. Playback through integrated speakers or headphone output.

Button diagram
(1 Power Switch) (2 Power Connections) (3 Voltage Controlled Low Pass Filters) (4 LFOs) (5 Envelope Generators) (6 Sync Connections) (7 Audio Connections) (8 Voltage Controlled Oscillators) ( 9 delay adjustment) (10 speed) (11 function keys) (12 sequencer)

parameter
keyboard multi-touch
Sound Generator 3 VCOs (Sawtooth Square) 1 EG 1 VCF 1 LFO
Power supply 6 AA batteries (about 10 hours) 9v AC adapter (positive inside and negative outside)
Included accessories 6 batteries User manual
Dimensions 193x115x46mm
Weight 377g

LOVCA BASS
This is an analog bass with all the features a bass needs to play loud bass drums, a thick BassLine, it has 3 oscillators, 1 voltage controlled filter, 1 LFO and 1 pack Network generator, built-in sequencer, with Activep, Self-Tuning and Slide functions, support MIDI and sync connection, battery powered. Playback through integrated speakers or headphone output.

Button diagram
(1 Power Switch) (2 Power Connections) (3 Envelope Generators) (4 Sync Connections) (5 Audio Connections) (6 VCO Filters) (7 LFOs) (8 VCOs) (9 Functions key) (10-touch keyboard)

parameter
keyboard multi-touch
Sound Generator 3 VCOs (Sawtooth Square) 1 EG 1 VCF 1 VCO 1 LFO
Power supply 6 AA batteries (about 10 hours) 9v AC adapter (positive inside and negative outside)
Included accessories 6 AA batteries User manual
Dimensions 193x115x46mm
Weight 370g

VOLCA BEATS
This is an analog drum machine, with analog synth sounds and PCM music engine, can create thick and powerful rhythms, built-in 16-step sequencer, with Active Step, Step Jump and Stutter functions, in a small structure, supports MIDI and synchronization Connected, battery powered, not only can play music through the integrated speakers, but also output to other devices through the headphone jack.

Button diagram
(1 Power Switch) (2 Power Connections) (3 Kick Drums) (4 Snare Drums) (5 Tom Drums) (6 Wipes) (7 Sync Connections) (8 Audio Connections) (9 Rhythm Repeats) (10 Master Zones ) (sequencer)

parameter
keyboard multi-touch
Sound Generator Kick Drum Snare Drum Tweeter Bass Drum Hi-Hat Percussion Clap Swing Stick Clap Bell
Power supply 6 AA batteries (about 10 hours) 9v AC adapter (positive inside and negative outside)
Included accessories 6 AA batteries User manual
Dimensions 193x115x46mm
Weight 372g

VOLCA DRUM
This is a digital drum machine with a six-part dual-layer DSP synthesis engine, based on some simple trigger waveforms, waveform folding and overdrive effects, and then a waveguide resonance effect, built-in 16Step step sequencer, support MIDI and sync connection, battery powered. Playback through integrated speakers or headphone output.

Button diagram
(1 Power Switch) (2 Power Connections) (3 Display) (4 MIDI Connectors) (5 Time Sync) (6 Headphone Jacks) (7 Volume) (8 Sequencer Ribbon) (9 Touch Keypad) (10 sound control area)

parameter
keyboard multi-touch
Sound Generator 6-digit parts (each with 2 oscillators, tone modulators and amps, etc.) and waveguide-based resonance effects
Connection terminal (headphone) Jack (3.5mm stereo mini headphone jack) SYNCIN jack (3.5mm mono mini headphone jack 20v or higher input level) SYNC OUT jack Nickel (3.5mm mono mini headphone jack, 5v output level) MIDI IN connector
Power supply 6 AA batteries (about 10 hours) 9v AC adapter (positive inside and negative outside)
Included accessories 6 AA batteries User manual
Dimensions 193x115x46mm
Weight 377g

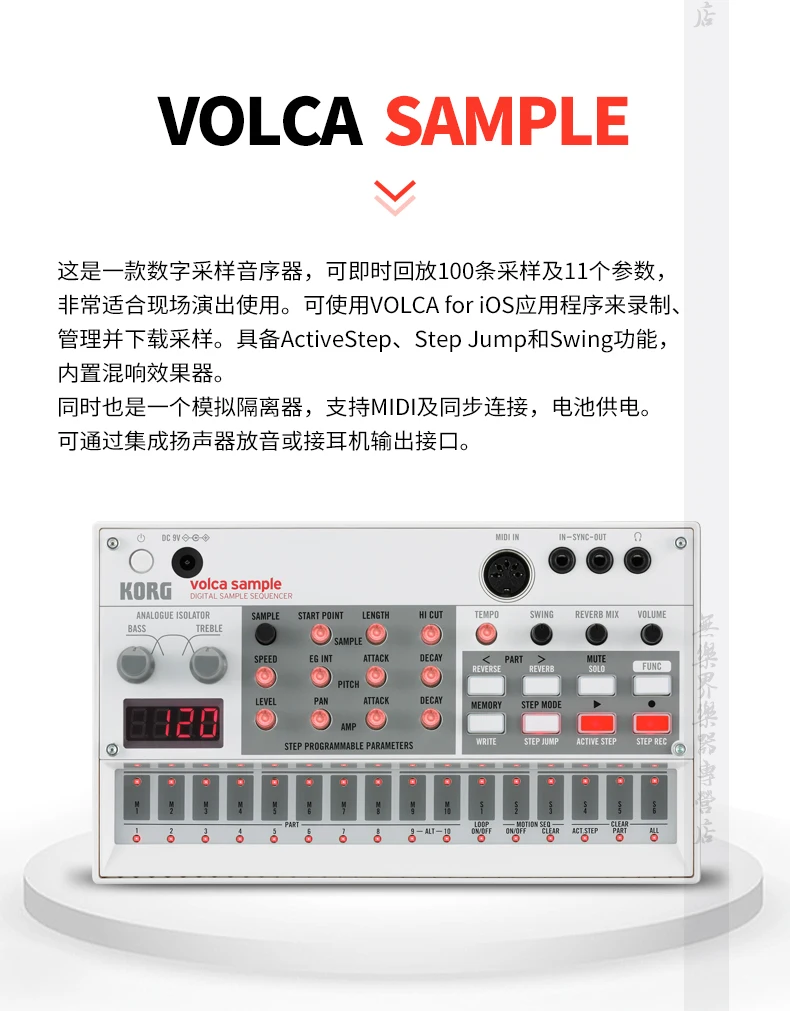

VOLA SAMPLE
This is a digital sample sequencer with instant playback of 100 samples and 11 parameters, ideal for live performances, can use the VOLCA for ios app to record, manage and download samples, with ActiveStep, Step Jump and Swing functions , built-in reverb effect, but also an analog isolator, supports MIDI and sync connections, battery powered. Play through the integrated speakers or connect to the headphone output interface.

Button diagram
(1 Power Switch) (2 Power Connection) (3 Parameter Adjustment Area) (4 Sync Connection) (5 Audio Connection) (6 Isolator Level Adjustment) (7 Master Area) (8 Sequencer)

parameter
keyboard multi-touch
Sound generator PCM sound source (up to 8 notes simultaneously) Digital reverse Analog isolator
Power supply 6 AA batteries (about 10 hours) 9v AC adapter (positive inside and negative outside)
Included accessories 6 AA batteries User manual
Dimensions 193x115x46mm
Weight 372g

VOLCA MODULAR
This is an analog synthesizer, including a synthetic sound, a digital engine and a sequencer, the internal lines are connected together, and the sound can be heard without connecting the pstch line, there are guide connections on the panel, VOLCA MODULAR has triangle wave oscillator, Modulator, Wave Folder ADH generator (ADH) Woggle random signal generator, etc., battery powered. Play through the integrated speakers or connect to the headphone output interface.

Button diagram
(1 power switch) (2 power connections) (3 clock compensation) (4 envelope generators) (5 sample and hold circuits) (6 divisions) (7 low pass) (8 time sync) (9 headphone jacks) (10 spaces Effect output) (11 volume) (12 combination area) (13 master area) (14 keyboard area) (15 module area)

parameter
keyboard multi-touch
Jack (headphone) jack (3.5mm stereo mini headphone jack) SYNC IN jack (3.5mm mono mini headphone jack, 20v upper limit input level) SYNC OUT jack Nickel (3.5mm mono mini headphone jack 5v output level)
Power supply 6 AA batteries (about 10 hours) 9v AC adapter (positive inside and negative outside)
Battery life Approx. 5 hours (when using alkaline batteries) CVIN jack (3.5mm TRS mini headphone jack)
Battery consumption 300mA
Included Accessories Six AA Alkaline Batteries, Sync Cable x1 Pairing Pin Cable (1set) User Manual
Dimensions 193x115x39mm
Weight 360g

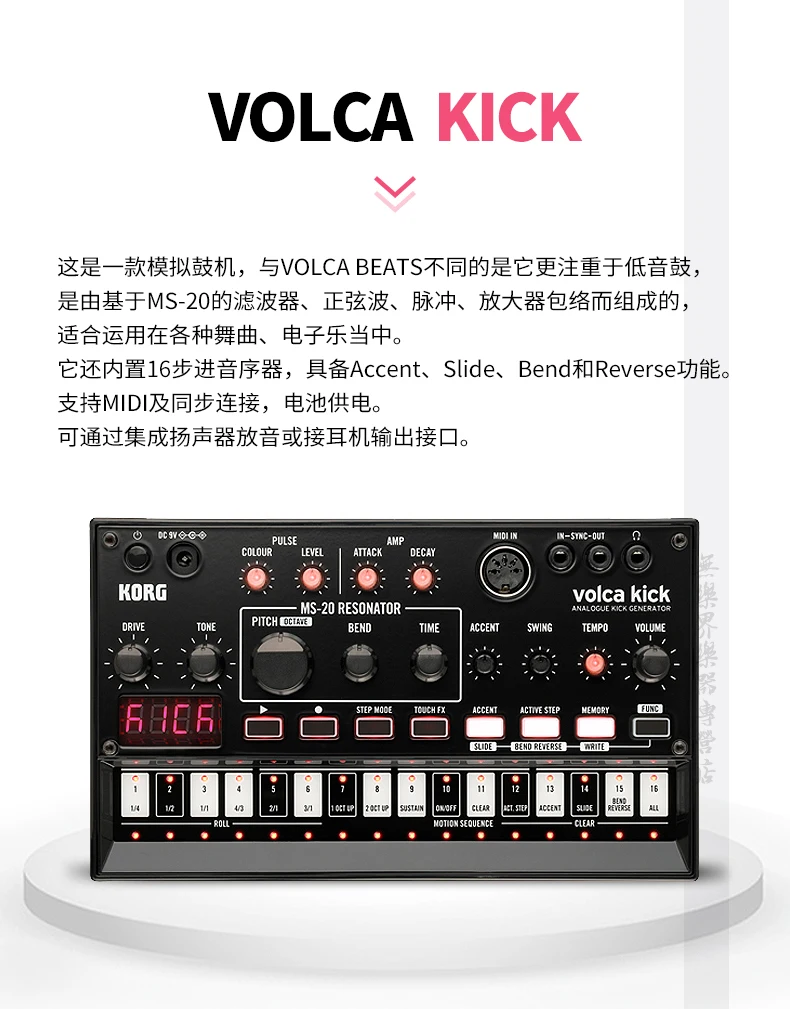

VOLCA KICK
This is an analog drum machine. Unlike VOLCA BEATS, it focuses more on bass drums. It is composed of MS-20-based filters, sine waves, pulses, and amplifier envelopes. It is suitable for use in various dance music. Among electronic music, it also has a built-in 16-step sequencer with Accent, Slide, Bend and Reverse functions. Support MIDI and sync connection, battery powered. Play through the integrated speakers or connect to the headphone output interface.

Button diagram
(1 Power Switch) (2 Power Connections) (3 Pulses) (4 Oscillator Envelopes) (5 Sync Connections) (6 Audio Connections) (7 High Frequency) (8 Overdrive) (9 Sound Generators) (10 Master zone) (11 sequencers)

parameter
keyboard multi-touch
Sound Generator MS-20-based VCFMS-20 Resonator Pulse Amplifier Envelope
Power supply 6 AA batteries (about 10 hours) 9v AC adapter (positive inside and negative outside)
Included accessories 6 batteries User manual
Dimensions 193x115x46mm
Weight 377g

VOLCA NUBASS
VOLCA NUBASS is KORG’s analog synthesizer equipped with NUTEBE, a new generation of vacuum tubes in the oscillator, using an analog transistor trapezoidal design, Nutube technology is equipped with two vacuum tubes, using one in the oscillator to generate a sawtooth or square wave, the other An overdrive circuit for sub-oscillators, adding an octave below the oscillator, equipped with an overdrive function, slight distortion, increasing the thickness of the Bass, 16 touch keys for step sequencer, built-in speaker, MIDI support and sync connection, battery powered.

Button diagram
(1 Power Switch) (2 Power Connections) (3 Vacuum Tubes) (4 MIDI Interfaces) (5 Sync Connections) (6 Headphone Interfaces) (7 Envelopes) (8 Tone Adjustments) (9 Transport Controls) (10 Filters) ( 11 Oscillators) (12 Displays) (13 Sequencers & Keyboards)

parameter
keyboard multi-touch
Type Analog Synthesizer
Maximum polyphony 1
Sound Generator VTO (Oscillator Sub-Oscillator) VCF (Voltage Controlled Filter) VCA (Voltage Controlled Amplifier) EG (Envelope Generator) LFO (Low Frequency Oscillator) Overload
Sequencer Part Number 1 Step Number 16 (Pattern chain available) Pattern 16 (1-10 are factory presets)
Power supply 6 AA batteries (about 10 hours) 9v AC adapter (positive inside and negative outside)
Included accessories 6 batteries User manual Sync cable
Dimensions 193x115x46mm
Weight 370g

VOLCA MIX
This is a VOLCA series dedicated analog small mixer, with 2 mono channels, 1 stereo, and each channel can adjust the level independently. High and low cut, send volume, mute. It can provide power for 3 VOLCA devices, and also supports auxiliary audio input, headphone and line output. By synchronizing and connecting VOLCA devices in series, it can be controlled on the VOLCA MIX in a unified manner, and the built-in speaker can process and play the input audio in a unified manner.

parameter
keyboard multi-touch
Mixer 4-channel analog mix bus (2 audio channels, 1 stereo) Voice channel mix send bus Stereo aux/return bus
Main chain Analog stereo sound field expansion, analog dynamic range compression
Connection terminal Mixer jack x3 (3.5mm mini phone jack, 0dbu) AUX IN jack (3.5mm stereo mini jack, 0dBu) SEND OUT jack (3.5mm stereo mini jack, 0dBu) SYNC OUT (3.5 mmstero mini jack, 5v output level) headphone jack (3.5mm stereo mini jack) LINE jack (L/R RCA jack, max 11.1 dBu)
Power supply DC 9V AC adapter VOLCA DC OUT jack x3 (for DC-DC cable, limited to 800 mA, 9V)
Dimensions 193x115x45mm
Weight 350g
