SKU: 1005001500232167 Category:


  • Brand Name: Rabotec
  • Origin: Mainland China
  • Condition: New
  • Model Number: J-1390b1
  • CNC or Not: CNC
  • Is Smart Device: YES
  • Item: laser cutting machine
  • working size: 1300*900mm
  • laser tube: 80w/100w/150w/180w
  • Laser type: CO2 sealed laser tube
  • Cutting speed: 50-5000mm/min
  • Voltage: 220V/110V
  • Graphic format supported: BMP, PLT,DST,DXF,AI,CDR
  • Software supported: CorelDraw, PhotoShop
  • Highest Scanning Precision: 2000DPI

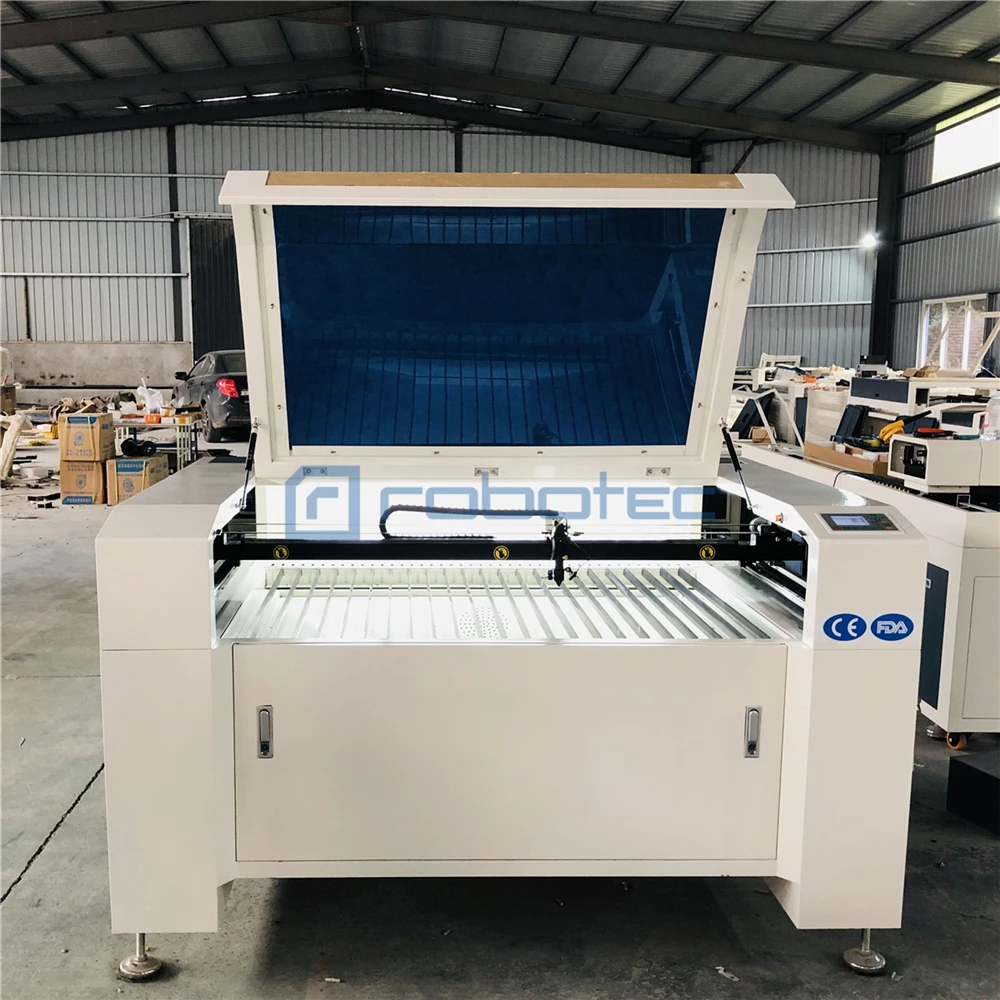

Robotec Co2 Laser Cutting Machine 90W 1390 With Reci W2 Laser Tube Ruida Laser Controller Rdc6445G Industrial Chiller All Parts


Item  /  Model


Cutting area


Laser power

80W 100W 130W 150W

Laser type

CO2 sealed laser tube,water-cooled,10.6um

Engraving speed


Cutting speed


Laser Output

1-100%software setting

Resetting positioning accuracy


Power supply

220V/50HZ (Optional 110V/60HZ)

Operating temperature

0 – 45°C

Operating humidity

5 – 95%

Min. shaping character

English 1.0 x 1.0mm

Graphic format supported


Software supported

TAJIMA, CorelDraw, Photoshop, AutoCAD

Driving system

stepper motor

Cooling mode

Water-cooling and protection system

Equipment Dimensions


Net Weight:


Shipping Dimensions

1980 x 1440 x 1220mm

Optional Spare Parts

Up-down clump, Rotary System, Honeycomb table

Recommended Spare Parts

Laser Tube and Lens

Hot laser engraving cutting machine, laser cutting machine for bottles

sample photobank (4)

>> Laser engraving machine features:

1. 3mm Cold-rolled steel welded machine bed, strong and running stable.

2. Aluminium blade table: to process hard materials like acrylic, wood and so on.

3. Fireproof window,more security.

4.CO2 Glass sealed laser tube China famous brand (EFR, Reci), good beam mode stability, service time over 8500~10000 working hours.

5. Laser Power 40W~180W, good quality and stable output to prolong the laser tube service time.

6. Singapore imported lens and mirrors. High transmittance, good focusing, reflecting effect.

7. Ruida or Leetro Controller USB interface, support online/offline working, English language system, adjustable cutting speed and power.

8. High accuracy stepper motors and drivers. Belt transmission.

9. Tiwan Hiwin Linear square guide rails, higher precision.

10. Laser engraving and cutting or Lasercut 8.0 software, user’s manual.

11. Tool box: A set of wrenches, lens cleaning paper, a pack of screws, a spare limit switch, a lens removal tool, manual, CD, U disk, a focal length of stick.

12. Open style, the front and back of the machine is open which is possible for longer material, breakthrough the limit of the workpiece length.

>>Option Parts:

Hot laser engraving cutting machine, laser cutting machine for bottles

>>Applicable Material:

Non-metal materials such as fabrics, label, rubber, marble, granite, tiles, paper boards, leather,

embroidery, acrylic, glass, plastic, MDF, wooden plates and paper ware etc.
>>Applicable Industry:

Advertising, Embroidery, garments, shoemaking, label processing, arts and crafts, etc.

Hot laser engraving cutting machine, laser cutting machine for bottles

1) Machine has been adjusted before delivery.
2) English software, user manual and detailed installation & training Videos DVD
3) Warranty period: one year on parts from date of shipping date, 3 additional years on free repair. Life-time technical support.
4) Machine spare parts and repair service is offered in lifetime.
5) Free training is offered in the plant and free samples are available.
6) 24 hours technical support by e-mail, calling or door-to-door service.
7) Professional cnc router machine supplier with 10 years experiences.
8) International quality certificate: CE, ISO9001

Hot laser engraving cutting machine, laser cutting machine for bottles

 For offer the most suitable machine with favorable price, would you like to confirm below questions:
1) What is your reuqested max working area, X:___mm, Y:___mm?
2) What mainly job you do ? Only engrave, cut or both ?
3) What kind are your materials, metal or non-metal, what are they?
After your return comments, we will send you more information about the machine along price . Thanks
